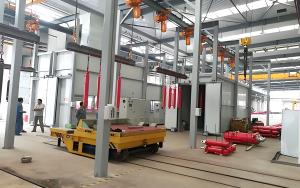

Tiếng ViệtRobotic Liquid painting line
ST-ALPL-PPB5022
Price: USD50000~100000
Get Quote PDF

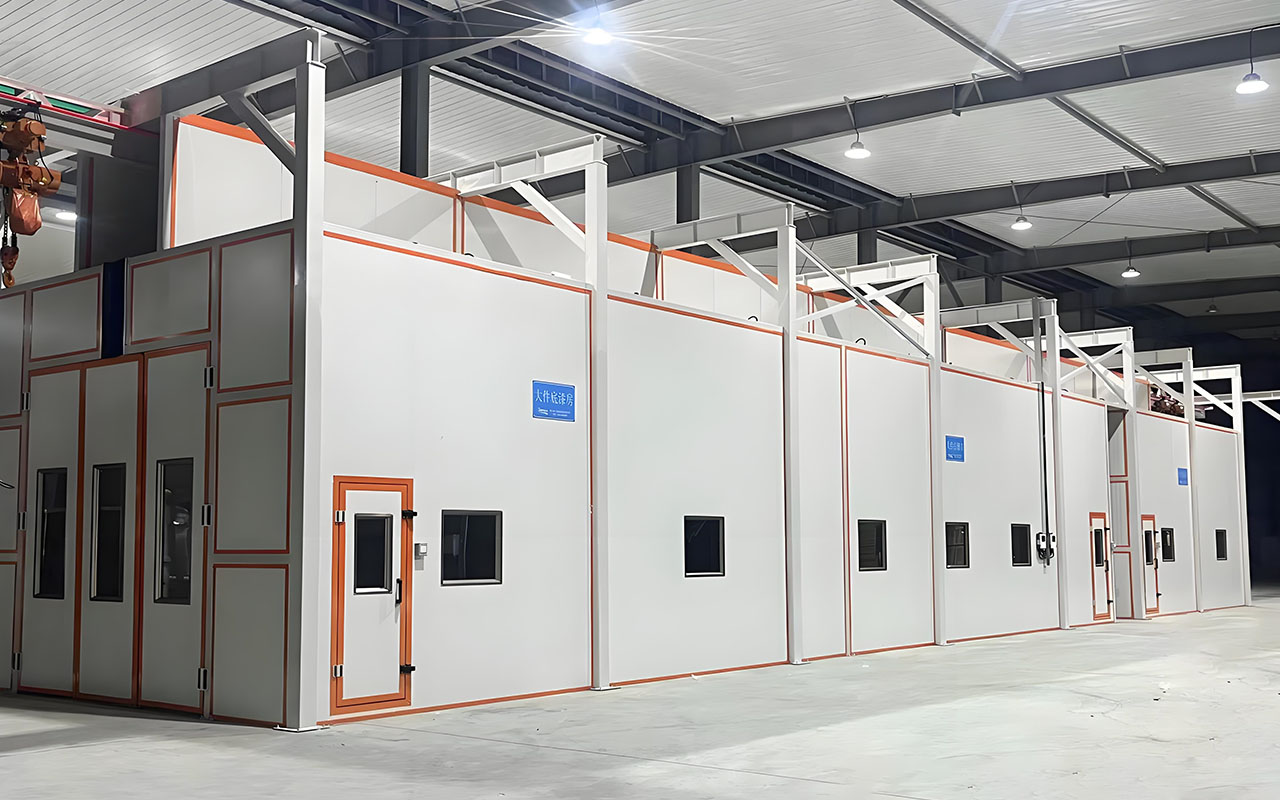

PP Board Spraying Room:5000*2200*3200; Entrance size W900*H2000
Chamber Wall:8mm PP board welding, Sandwich structure (100mm), One side with 2 gun positions
Chamber Base:5000*2200*700
Flip Plate:2000*500
The painting production line, also known as a coating line, is a specialized conveyor-based system used to apply protective or decorative coatings to metal and non-metal surfaces.
The painting line equipment is suitable for spray painting and powder coating of workpiece surfaces and is mainly used for batch coating operations. It forms a complete production line when integrated with pretreatment equipment, spray booths, drying ovens, and conveyor chains.
The painting production line effectively solves common problems associated with manual spraying operations, such as high labor intensity, low efficiency, large manpower requirements, unstable coating quality, poor uniformity, and excessive paint waste. Based on preset parameters, this automated painting line can perform large-area spraying automatically, significantly reducing labor requirements while achieving high spraying efficiency. The coating quality is stable with excellent uniformity.
Coating solutions for Industry
Main Features of the Painting Production Line
1.High speed with uniform coating and high efficiency; low energy consumption and large output, achieving 4–5 times the productivity of manual labor.
2.Centralized control system for easy operation and maintenance.
3.A quick color-change system can be designed according to customer requirements, significantly reducing spray gun cleaning time during color changes and improving equipment utilization.
4.Centralized control design ensures convenient operation and maintenance.
5.The upper and lower conveyor rail system is designed to accommodate differences between long and short workpieces, incorporating an auxiliary automatic transverse unloading device. The entire process is fully automated, making unloading simple and efficient.
6.Based on many years of experience in painting process technology, the entire painting line features a simple and smooth workflow with easy operating procedures, allowing operators to become proficient quickly.
7.Spray gun angles can be automatically adjusted according to the size and shape of the products.
| No. | Name | Specification | Unit | Quantity | Note |
| 1 | PP Board Spraying Room | 5000*2200*3200; Entrance size W900*H2000 | Set | 1 | Gantry not included |
| 2 | Chamber Wall | 8mm PP board welding, Sandwich structure (100mm),One side with 2 gun positions | Set | 1 | |
| 3 | Chamber Base | 5000*2200*700 | Set | 1 | Stainless steel + square tube |
| 4 | Flip Plate | 2000*500 | Set | 1 | PP Board |
| 5 | Reverse Blowing | Batch | 1 | Aluminum alloy |
Automated coating line Robotic spray painting booth Intelligent spray booth Wet Robotic Painting Line
