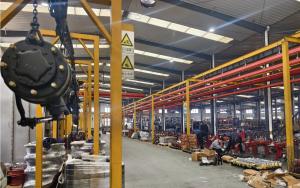

Robotic Painting Production Line

ST-PR2500

Price: USD200,000~300,000

The automatic painting line and robotic painting line are highly adaptable to multi-variety, multi-batch production, making them ideal for manufacturing cars, minibuses, pickup trucks, and other vehicle types.
This robot painting system is widely applicable to the coating of vehicle components as well as large, medium, and small parts across various industries, ensuring flexibility and scalability in modern automatic painting line operations.
The advanced robotic painting line enables precise contour-based spraying trajectories through intelligent robot painting, significantly improving coating uniformity and delivering superior paint finish quality.
By integrating a high-efficiency automatic painting line with optimized robot painting technology, overspray is minimized, paint mist overflow is reduced, cleaning solvent consumption is lowered, and overall material utilization is greatly improved.

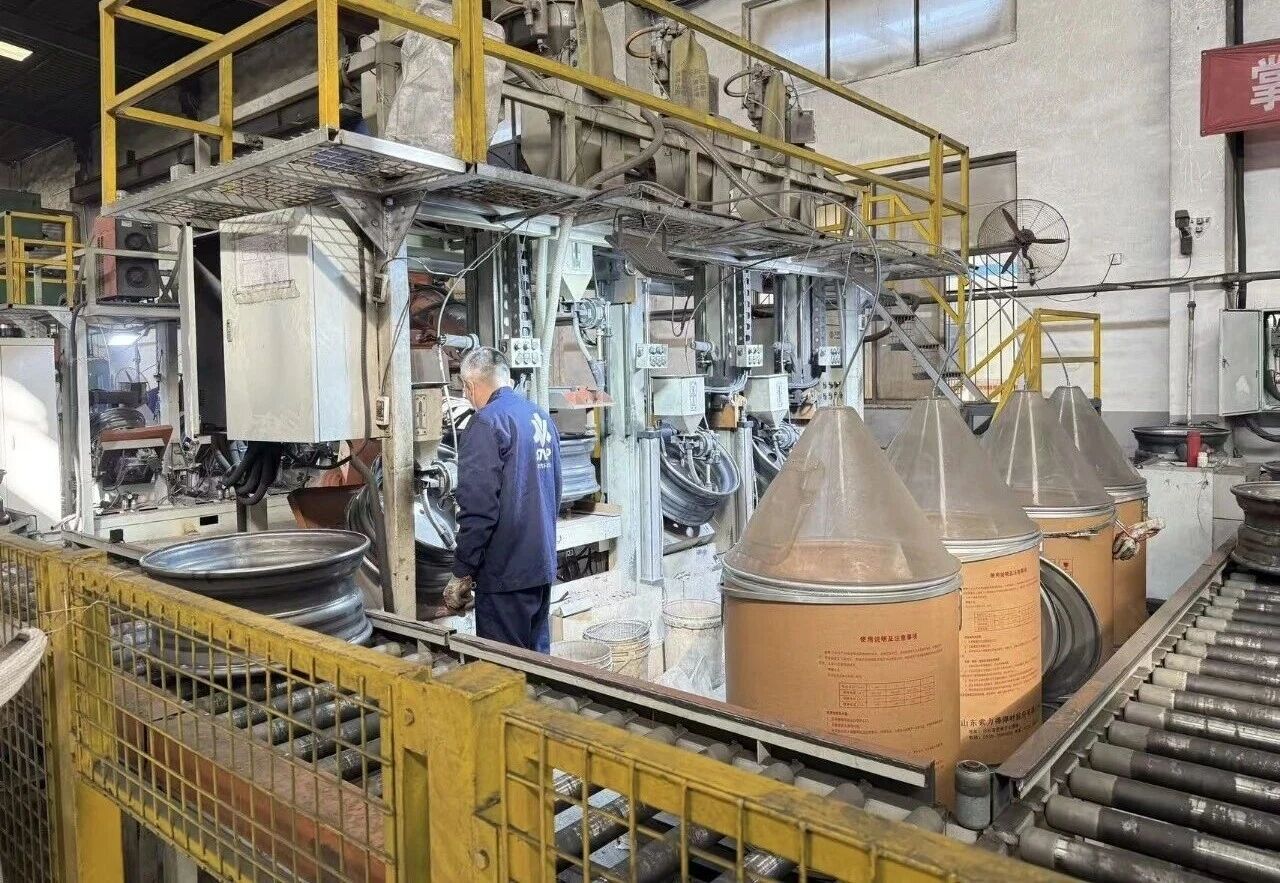

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

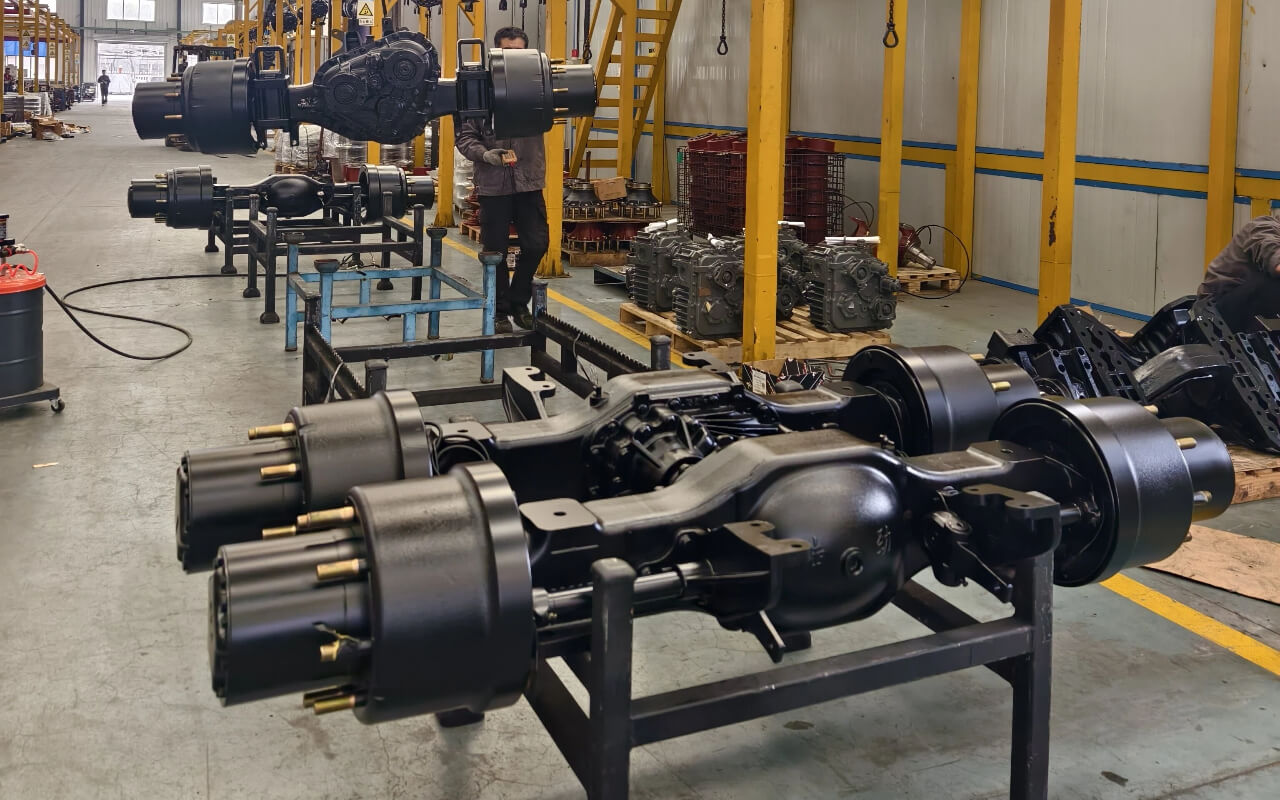

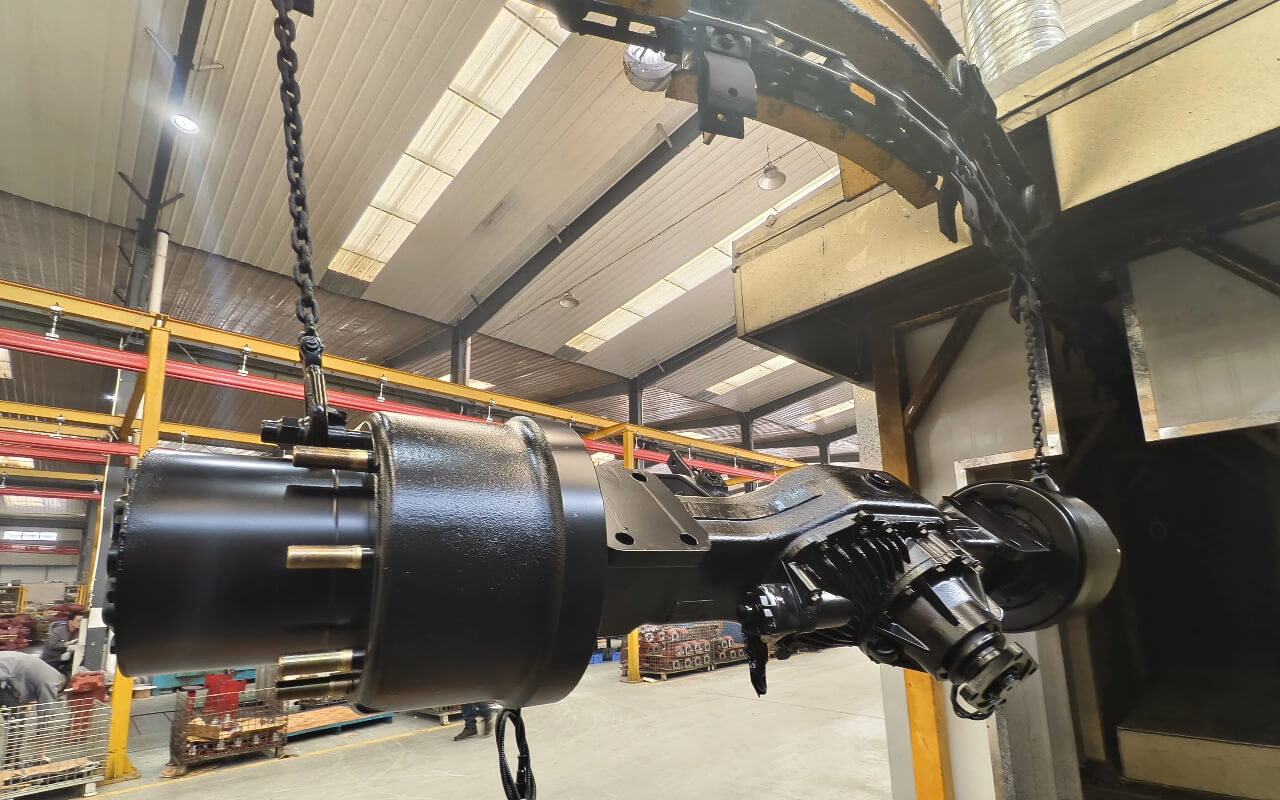

Workpiece	Automotive components (steel rear axles)
Material	Steel
Maximum workpiece size	L 2,500 × W 1,000 × H 1,000 mm
Maximum workpiece weight	≤ 500 kg / piece
Production schedule	8 hours / shift
Line speed	0.1 – 4 m/min (variable)
Coating process	Liquid painting with pre-treatment
Energy sources	Electricity + Natural gas
Power supply	3-phase: 380 VAC, 50 Hz (±10%) \| Single-phase: 220 VAC, 50 Hz (±10%)
Compressed air	4 – 6.0 kg/cm²

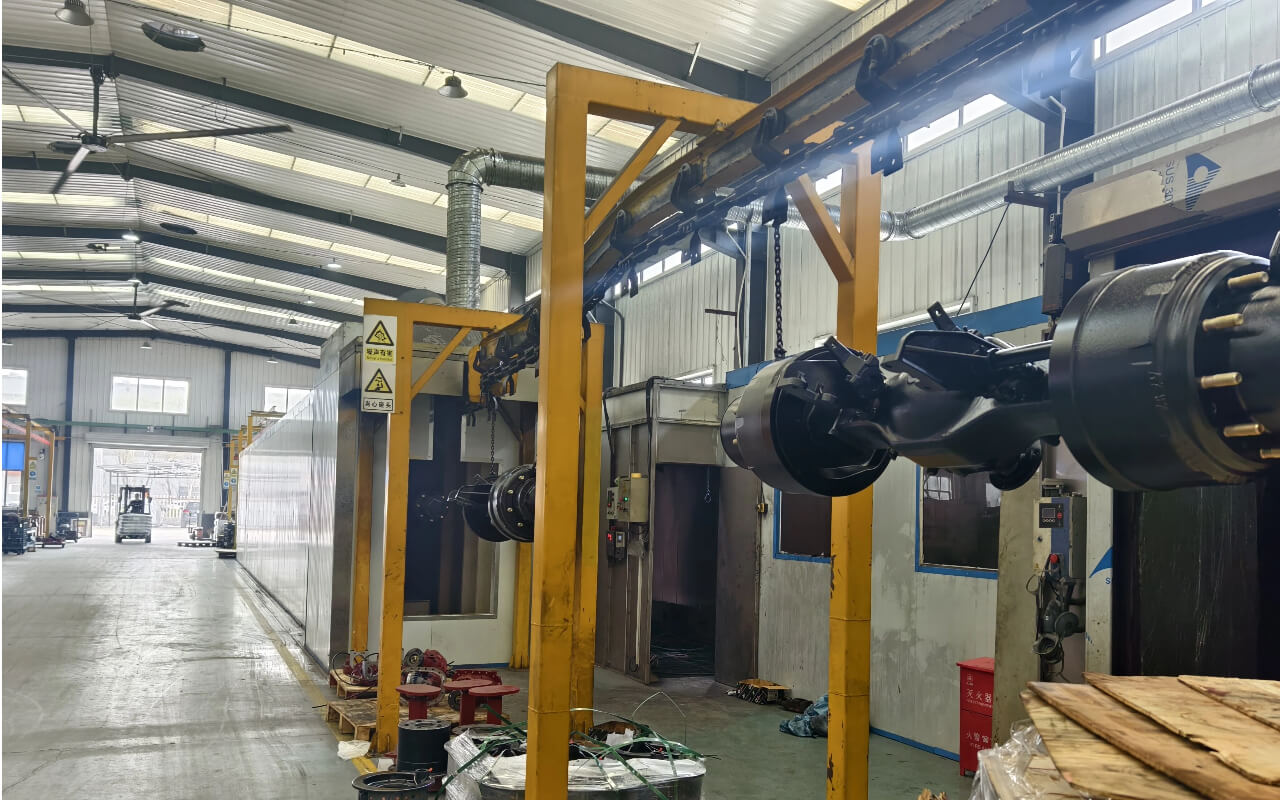

Hanger type	Dual-point suspension
Hanger height	600 mm from rail top to workpiece upper face
Conveyor chain	XT160 heavy-duty — 500 kg single-point capacity
Hanger pitch	640 mm (transverse); hangers loaded to full pitch
Line speed (design)	V = 0.8 m/min (adjustable 0.1 – 4 m/min via VFD)
Key equipment	Pre-treatment spray system, paint spray booths, drying & curing ovens, gas burners, overhead conveyor, electrical control, exhaust treatment

新对话 (1) (1).jpg

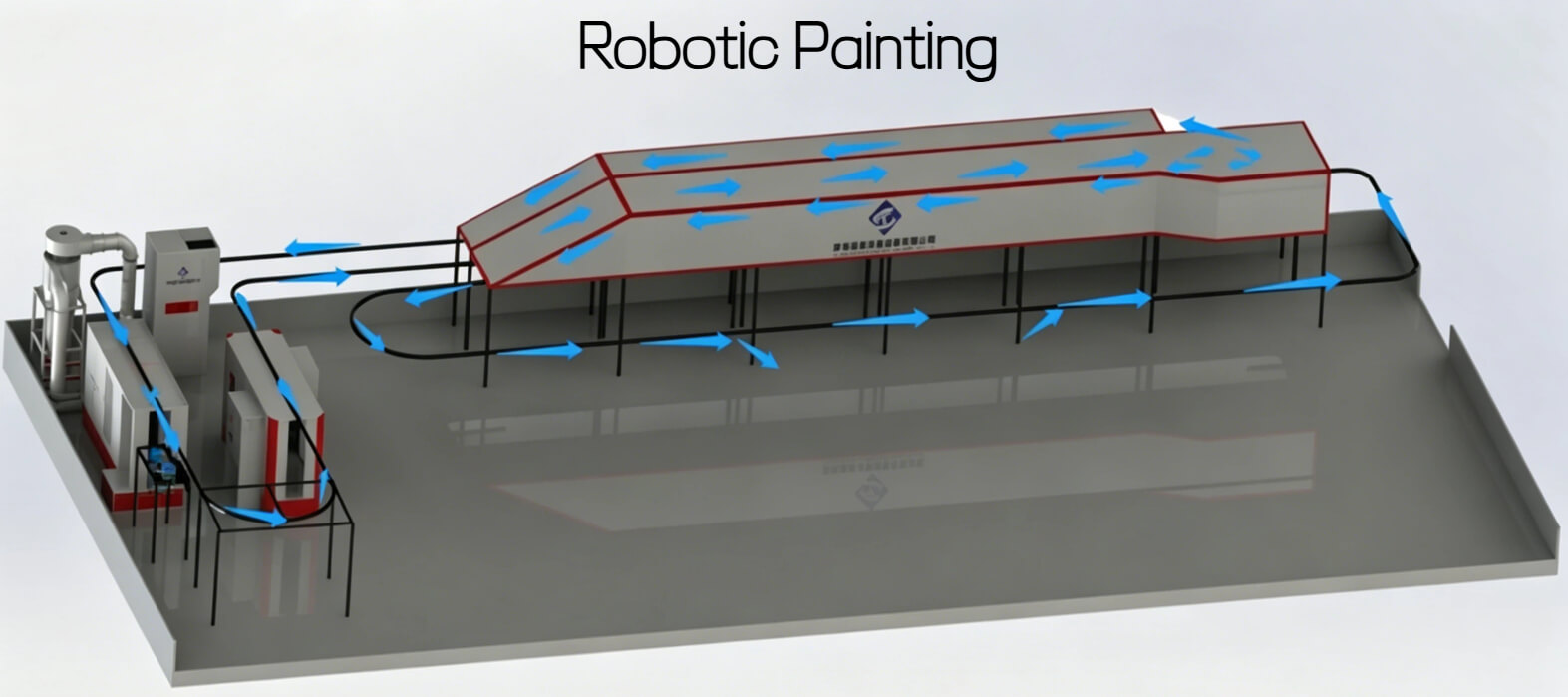

Process Flow

Loading → Hot-water Wash 1 → Degreasing → Hot-water Wash 2 → Hot-water Wash 3 → Draining → Water-removal Drying → Primer Spraying → Topcoat Spraying → Flash-off / Levelling → Curing Oven → Unloading
