I-Beam Painting Line

STA-3007L

Price: USD200,000~300,000

High Intelligence & Automation: Equipped with 3D scanning technology to automatically identify shapes; requires zero programming for operation.
Superior Quality & Efficiency: Delivers uniform coating and high-speed output. The
Eco-Friendly & Healthy: Low airflow requirements (approx. 10,000 m³/h) and effective odor control create a cleaner, safer workspace for employees.
Cost & Space Saving: Reduces paint wastage and features a compact footprint thanks to the reciprocating spray design.

Automated steel-structure painting equipment featuring 3D scanning for autonomous code generation and processing.

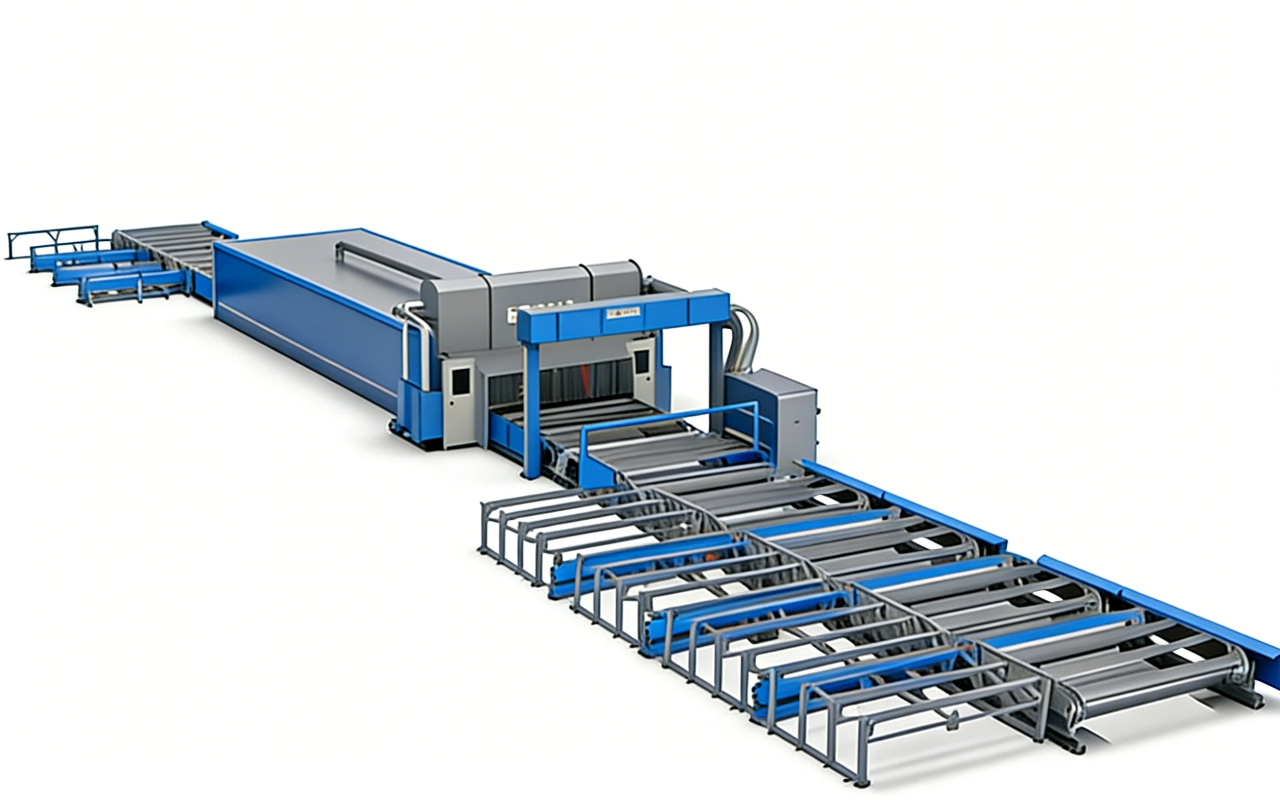

The Intelligent Steel Component Painting Line is a fully automated, smart spray-coating assembly line developed by our company specifically for steel structures. It offers high efficiency, superior coating quality, uniform thickness, material savings, and energy efficiency.

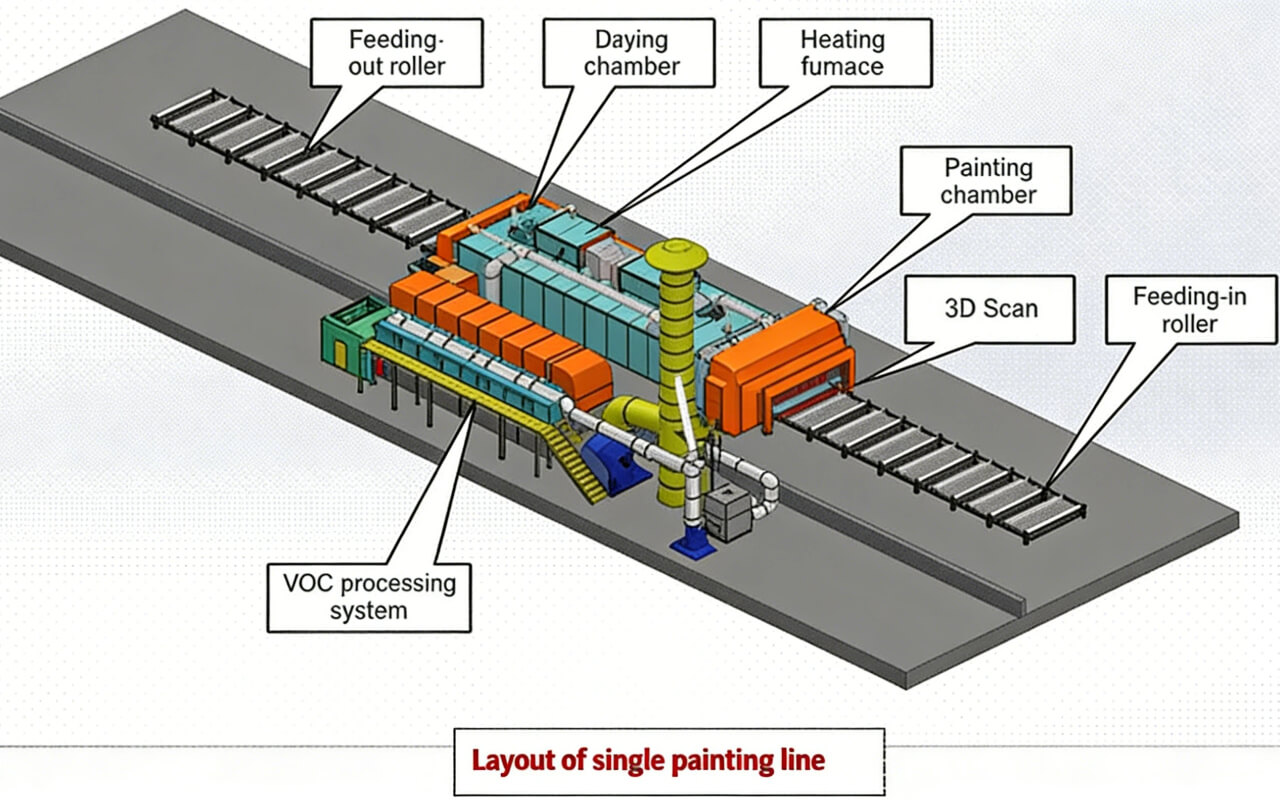

Utilizing an assembly-line workflow and advanced 3D scanning technology, the system intelligently identifies components and completes the painting process automatically without the need for programming. The reciprocating spray system occupies minimal space, and the exhaust treatment requires only a 10,000m³/h airflow, ensuring an odorless workshop and a cleaner, healthier, and more eco-friendly environment.

The "Spray-then-Bake" process allows components to be loaded for transport immediately after leaving the line, significantly shortening production cycles. The equipment requires only three operators who can be deployed after basic training, eliminating the need for highly skilled painters. It is a pioneering product in the light steel component painting industry.

Paintable Component Types

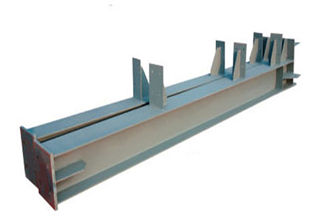

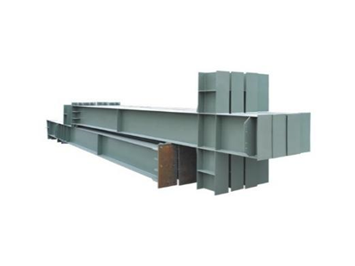

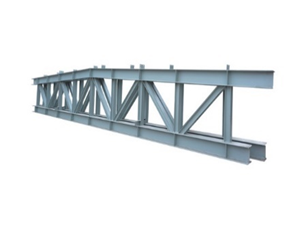

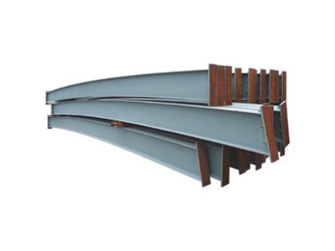

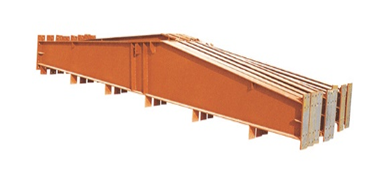

The following steel components are compatible with the system: columns, section steel (H-beams/I-beams), angle steel, crane beams, secondary beams, tie rods, round/square tubes, plates, and profile steel, etc. Please refer to the images above for reference.

Compatible Component Details

Primary Structures: Main columns and heavy-duty crane beams.
Secondary Structures: Secondary beams, tie rods, and bracing.
Geometric Profiles: Round tubes, square tubes, and various plate profiles.
Standard Sections: Universal beams (H/I), channels, and angles.

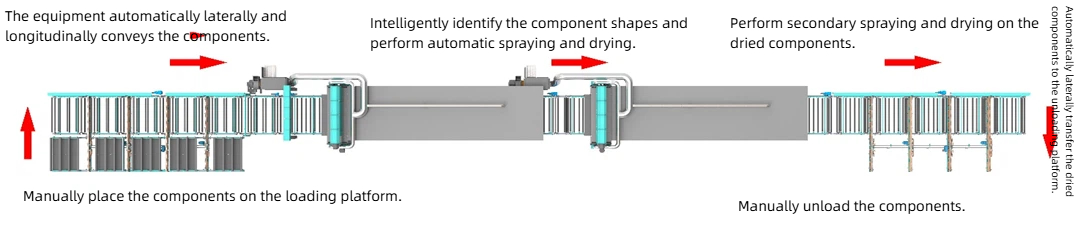

liquid coating line.jpg

Category	Item	Technical Parameters	Remarks
Equipment	Dimensions (L*W)	101m × 11m	Subject to actual site conditions
	Control System	Industrial PC + ShengTai Proprietary Software	Hardware: Beckhoff (Germany)
Workpiece Requirements	Max Width & Height	Width ≤ 3000mm; Height ≤ 700mm (above chain) + ≤ 220mm (below chain)	Lower part must stay within the 750mm spacing of the loading platform
	Workpiece Length	14000mm ≥ Length ≥ 4500mm (≥ 4500mm with flange)	If < 4500mm, auxiliary brackets are required for transport
	Max Load Capacity	≤ 500 kg/m
	Lateral Spacing	> 1/2 of the workpiece height	Gap between components (width-wise)
	Longitudinal Spacing	≥ 1.5 meters	Gap between components (length-wise)
	Height Variance	≤ 50mm for the same row	Differences exceeding this will affect coating quality
Recognition System	Brand	SICK (Germany) LMS Series 3+1
Spraying Chamber	Inlet Dimensions	3.1m * 0.9m
	Coating Types	Water-based / Solvent-based / Two-component paint
	Spray Gun Quantity	6 Upper + 6 Lower	Automatic switching and start/stop at different angles
	Spraying Speed	< 1.3 m/min	Adjusted based on structure and film thickness requirements
	Filtration Airflow	12000 m3/h
	Coating Thickness	50μm - 100μm	Uniformity may vary slightly
	Pump System	Constant temp, stirring, paint level alarm	T3225 Pump + 50L Paint Tank
Purification Unit	Primary Filtration	Spoiler plates on both sides of the spray booth
	Secondary Filtration	Paint mist filter cotton
	Exhaust Airflow	≥ 12000 m3/h
	Fan Power	≥ 15 kW
Drying Room	Chamber Length	27.5 meters	Subject to actual site conditions
	Burner Brand	Riello
	Power Consumption	45 kWh/h	Rated
	Heating Method	Natural Gas Burner	Single chamber: 2×200,000 kcal
	Warm-up Time	Approx. 30 minutes
Transmission Unit	Conveyor Power	Servo Motor	Delta Servo Motor
	Spraying Speed	Max 1.3 m/min	Fully automated control
	Longitudinal Conveyor	T-plate chain transmission	Servo-driven, fully automated
	Cross-transfer Beams	2 sets (3 beams per set at loading/unloading)
	Beam Lifting Capacity	≤ 3500 kg per unit
	Beam Lifting Height	500mm
Operating Conditions	Power Supply	3-Phase 4-Wire, AC 380V, 50Hz
	Compressed Air	Pressure: 0.4—0.6 MPa; Flow: 48 m3/h
	Ambient Temperature	-10°C to +45°C
	Operating Hours	24-hour continuous operation supported

Note: When the material or ambient temperature exceeds 40°C, the customer is responsible for ensuring the correct paint selection to avoid safety incidents or application failures.
