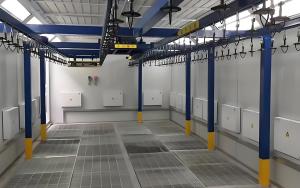

Liquid Paint Application Lines

ST-ALPL-5240

Price: USD10000~20000

Integrated Production: Flow Fragmented, process-based workshops are transformed into streamlined production lines, enabling continuous operations & significantly improving material handling efficiency
Smarter Workforce: Structure Coating work shifts from skill-dependent craftsmanship to standardized equipment operation, reducing reliance on scarce master painters & fostering technicians proficiency
Data-Driven Management: Real-time monitoring and analysis of coating parameters support precise production control, cost optimization, and process improvement.
Enhanced Market: Competitiveness Shorter lead times allow rapid response to urgent orders, while consistent, high-quality output supports entry into premium markets.

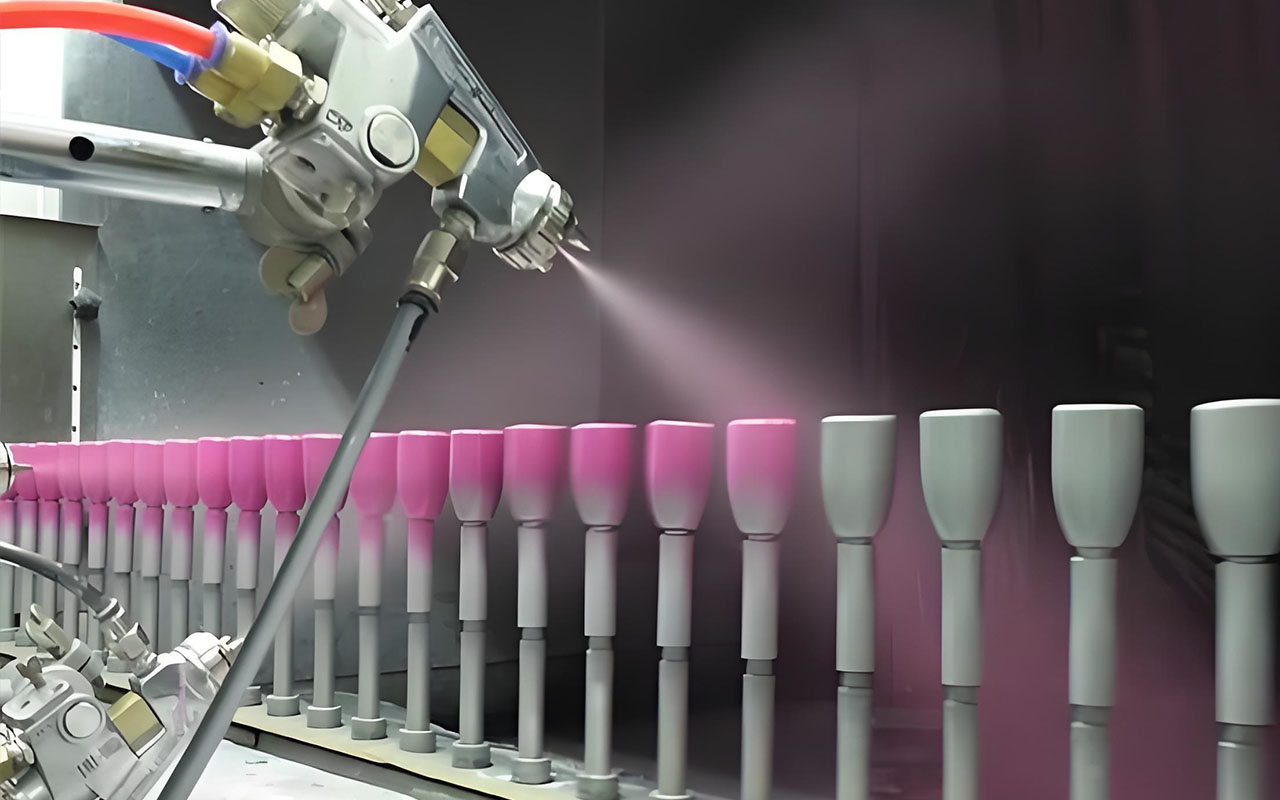

An automated painting production line, also known as a paint spraying line or paint spraying production line, is an automated mechanical equipment used for painting. It consists of a coating machine, a feeding system (loader, air duct, etc.), a conveying system (chain conveyor belt), and a control system.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Fully automated coating production lines are used in the assembly, sub-assembly, testing, debugging, and conveying of products in industries such as small and medium-sized household appliances, electronics, electrical appliances, electromechanical products, instruments and meters, hardware tools, toys, daily chemicals, and food. They are widely used in numerous industries including household appliances, hardware, civil aviation, transportation, construction, power and electrical control, medical devices, and machinery equipment.

Product Specifications

No	Name	Customization	Quantity	Remarks
1	Curing Room	600026003000	1 Set
	Wallboard	120mm(120 Kg)	83 ㎡
	Framework	1001002	1 Batch	Galvanize
	Container Lock		1 Set
2	Heating System	Electricity	1 Set
	Heating Rod	96 Kw	48 Pieces	201
	Support	6 Meters	1 Set
	Grid	3*3	8 ㎡	6*1.3
	Circulating Fan	0.75 Kw	2 Sets	Three Billion
	High Temperature Line	6 Square	6 Sets	GB Standard
	Control	Heating Group 8 Groups (With 12 Kw) Timer Temperature Control Device 0.75 Kw Fan Control *2 5.5 Kw Fan	1 Set	Delixi
3	Spray Room	500030003500	1 Set
	Wallboard	1.2mm Zinc Plating	1 Batch
	Recycling Machine	25006002000	2 Sets	Galvanized 1.2mm
	Filter Cartridge	Φ325*900	8 Sets	Chuck
	Illuminate	Be Explosion-Proof	4 Sets	LED
	Fan	4 Kilowatts	2 Sets
	Pipeline	Diameter 400	1 Batch
	Control	Illuminate Spray Gun Power Supply 4 Kw Fan Control 2 Pulse Power Supply 2	1 Set	Delixi
4	Spray Machine	E7	2 Sets	Debel
	Spray Gun	WA101	2 Sets	Lidong
	Diaphragm Pump	WA101	2 Sets	Lidong

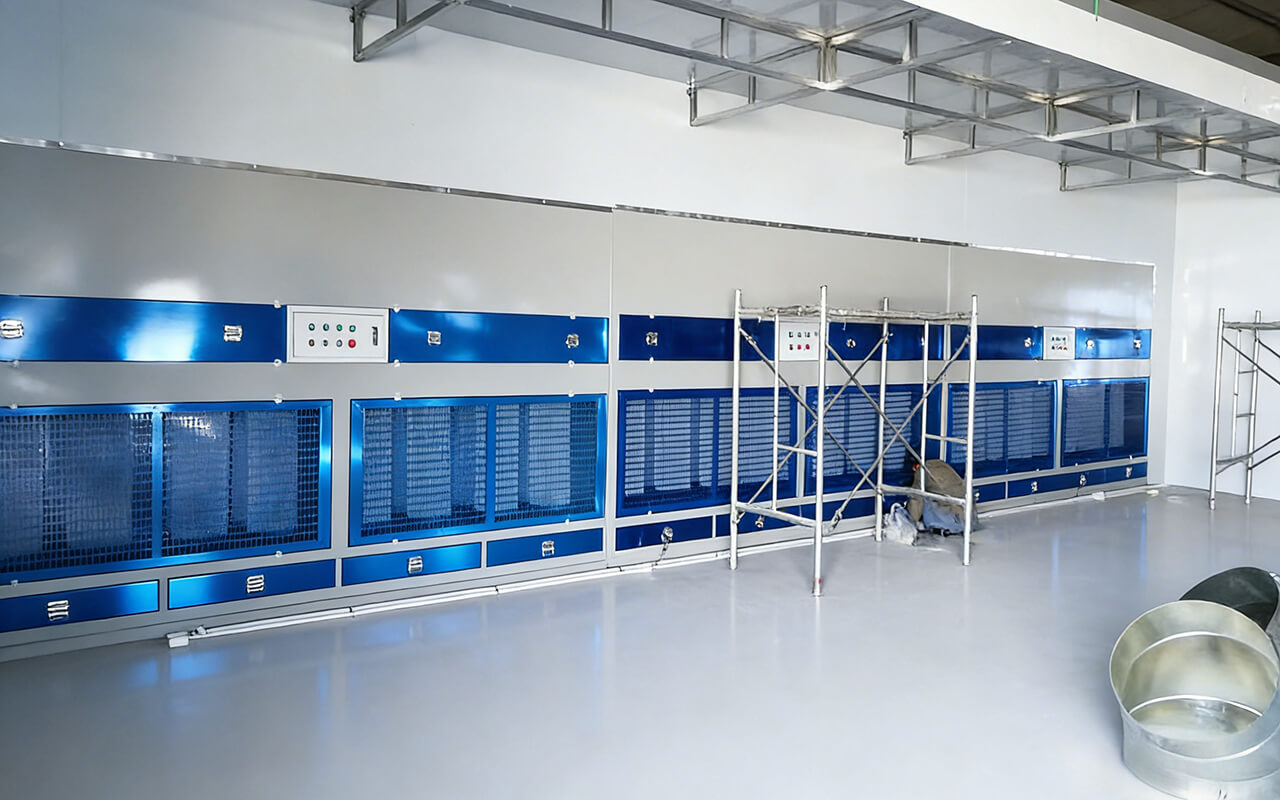

5	Paint Spray Booth	520040002500	1 Set
	Pond	26003000400	2 Sets	1.8mm201
	Water Curtain Surface	260011002100	2 Sets	304*1.0
	Grid	3*3	15.6 ㎡	Spraying Plastics
	Water Pump	2.2 Kw	2 Sets	Sewage Pump
	Illuminate	LED	4 pairs	Be Explosion-Proof
	Control	Illuminate Water Pump *3 Fan 18.5 Kw	1 Set	Delixi
	Fan	18.5 Kw	1 Set	Three Billion
	Pipeline+Discharge	Φ600	1 Batch	Galvanize
6	Rail		1 Set
	Rail	8 Kg	52.4 Meters	2 Pieces, 26.2m Each.
	Track Wheel		8 Sets
	Ingredients	Link+Fixed	1 Batch
