Powder coating has become one of the most reliable and widely used surface finishing technologies for sheet metal components. As a clean, durable, and efficient solution, it is a core process in modern powder coating lines across industries such as construction, automotive, appliances, and industrial equipment.

⚙️ How Does Powder Coating Work?

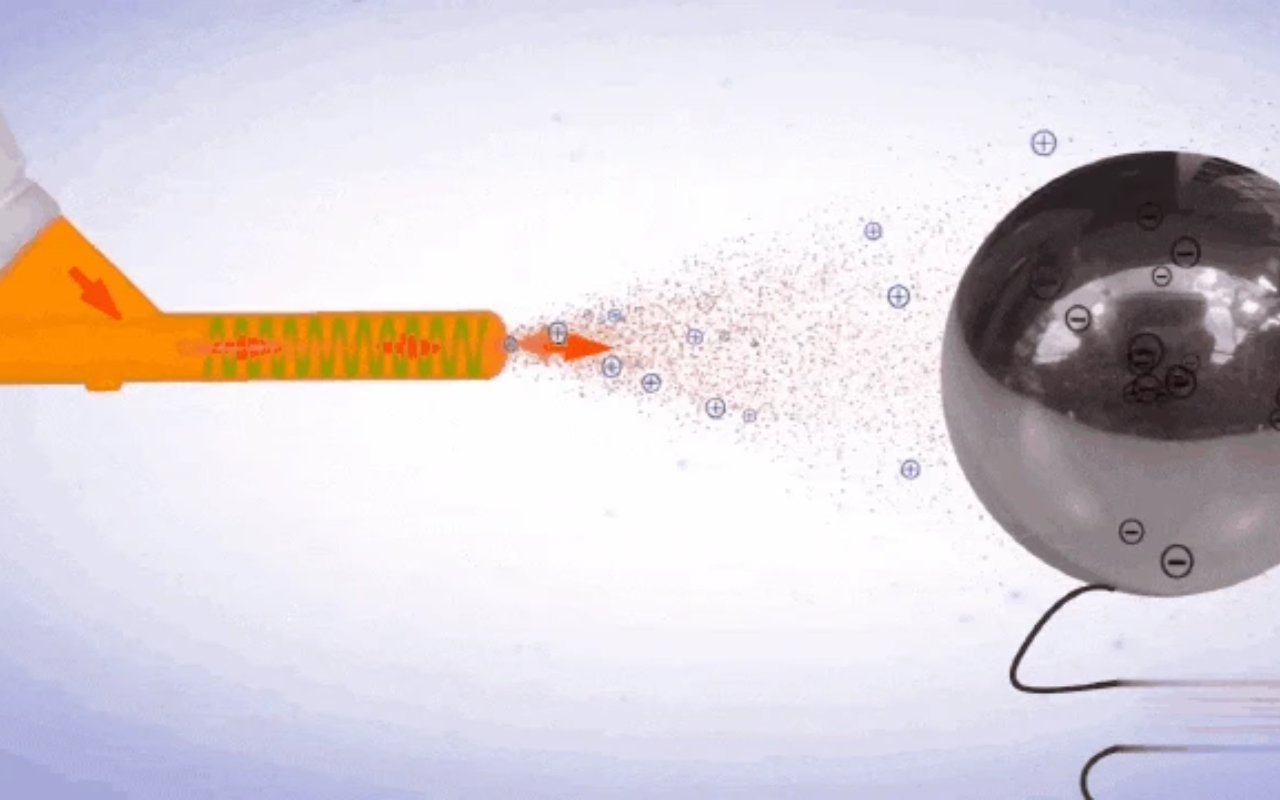

Electrostatic powder coating uses high-voltage electricity to charge powder particles, allowing them to be evenly attracted to grounded metal surfaces. Once sprayed, the coated parts are cured in a high-temperature oven, where the powder melts, flows, and solidifies into a hard, protective coating.

The result:
✔ Strong adhesion
✔ Uniform thickness
✔ Excellent corrosion resistance
✔ Long service life

❣️Key Process Stages in a Powder Coating Line

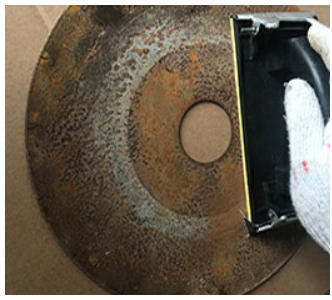

1. Surface Preparation

To ensure strong adhesion, parts may undergo sandblasting or shot blasting. This removes oil, oxidation, and surface defects while increasing surface roughness for better coating performance.

2. Chemical Pre-Treatment

Typical steps include degreasing, rinsing, phosphating, and drying. Proper pre-treatment is critical for corrosion resistance and coating durability.

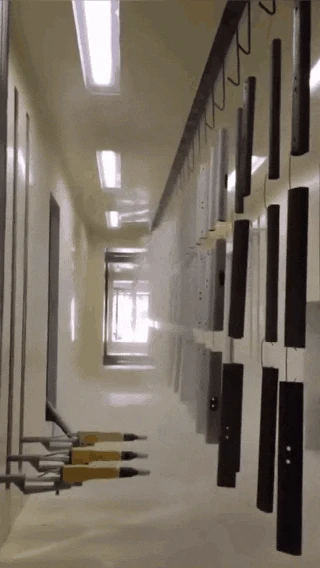

3. Electrostatic Powder Coating

Powder is sprayed evenly onto the workpiece using electrostatic attraction. Overspray is collected and reused through a powder recovery system—improving efficiency and reducing waste.

4. Curing & Cooling

Coated parts pass through a curing oven (usually around 180–200 °C). After cooling, a smooth, durable coating film is formed.

❣️Main Equipment Used

• Electrostatic powder coating machines

• Powder spray booths with recovery systems

• Air compressors and air purification units

All systems are seamlessly integrated into a high-efficiency powder coating line designed by ShengTai Painting Equipment.

❣️Powder Coating vs. Liquid Painting

| Powder Coating | Liquid Painting |

| --------------------------- | ----------------------------- |

| Thicker & more durable | Thinner coating |

| Better corrosion resistance | Moderate corrosion protection |

| No solvent emissions | Contains VOCs |

| Higher curing temperature | Lower curing temperature |

| Often no primer needed | Requires primer |

❣️ Handling Defective Coatings

Defective parts can be stripped using chemical stripping methods, which are cost-effective and environmentally safer compared to traditional burn-off processes.

✅ Why Choose ShengTai Painting Equipment?

At ShengTai Painting Equipment, we design and manufacture complete powder coating lines that deliver:

• High coating efficiency

• Consistent quality

• Energy savings

• Environmental compliance

From system design to installation and after-sales support, we help customers build smarter, more reliable surface finishing solutions.
